BLACKROCK BULK CABLE

BLACKROCK BULK CABLE

Regular price $3.85 USD
Regular price $0.00 USD Sale price $3.85 USD
Sale Sold out
Shipping calculated at checkout.
Choose

BLACKROCK CABLE DESIGN

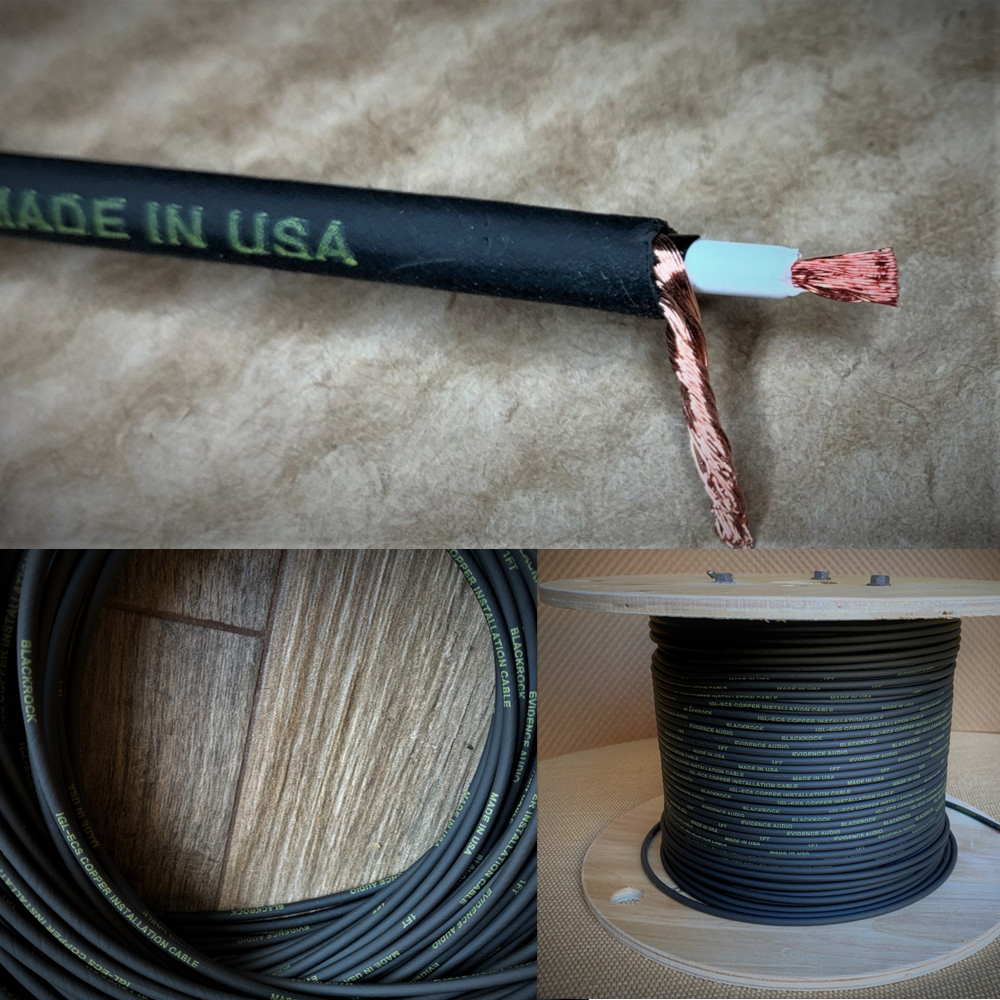

Blackrock is a compact cable at 4mm outer diameter perfect for analog audio runs that require a smaller form factor. It uses the same conductors found in the Reveal and Forte cables, just with a smaller jacket for use in tighter places such as on pedalboards or in rack systems. When paired with our ESP-RA connectors it makes a wonderful patch cable. The size and design is identical to Monorail cable but the single solid-core center conductor is replaced with an IGL-ECS conductor.

Our proprietary IGL-ECS (Increased Grain Linearity – Enamel Coated Strands) utilizes extremely pure copper conductors for positive, with parallel-run conductors for the ground path, which provide shielding with minimal crosstalk.

The negative effects of strand interaction are greatly reduced from the signal by putting an enamel coating over the individual strands of the center conductor. This allows the conductor to measure and sound like a single solid-core conductor, yet retain the flexibility of a cable using stranded conductors.

These key differences in design allow what comes out of the cable to match what goes into the cable.

 High-purity IGL-ECS copper conductor for distortion-free midrange and high frequencies.

 The negative effects of strand interaction on the guitar signal are greatly minimized by putting an enamel coating over the individual strands of the center conductor.

 20 awg conductor size keeps skin-effect distortions outside the audio spectrum while offering ample cross-sectional area.

 Parallel-run shield provides 98% coverage with minimal crosstalk.

 Coaxial geometry with low capacitance for compatibility with a range of RLC possibilities.

 Carbon-loaded extrusion for protection from triboelectric noise.



IMPORTANT BLACKROCK ASSEMBLY NOTE!

Blackrock is offered here in bulk but requires serious consideration for the "DIY" user. The enamel coating on the strands of Blackrock must be removed before soldering the connection. The best way to do this is by using a liquid flux and a high-temperature iron.

Please see the video below where the conductors are prepared by an experienced assembler. The practice leading up to this display was thousands of hours and make it look easy. If you have not worked with the IGL-ECS conductors found in Blackrock, Reveal or Forte cable I recommend that you budget time for learning how to do so, or consider the Monorail cable which will sound equally amazing and give you a much easier termination process.





View full details
